JiKong BMS

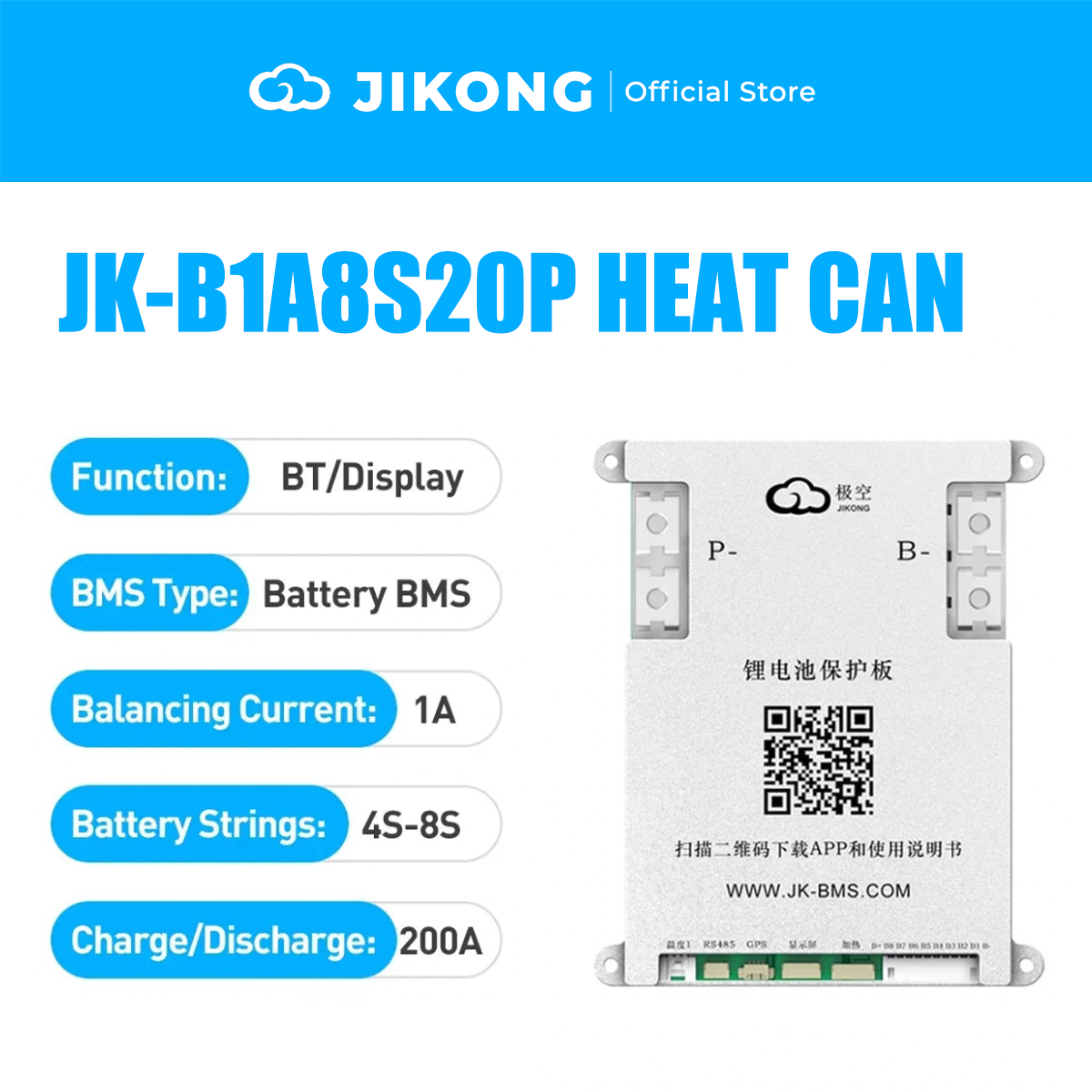

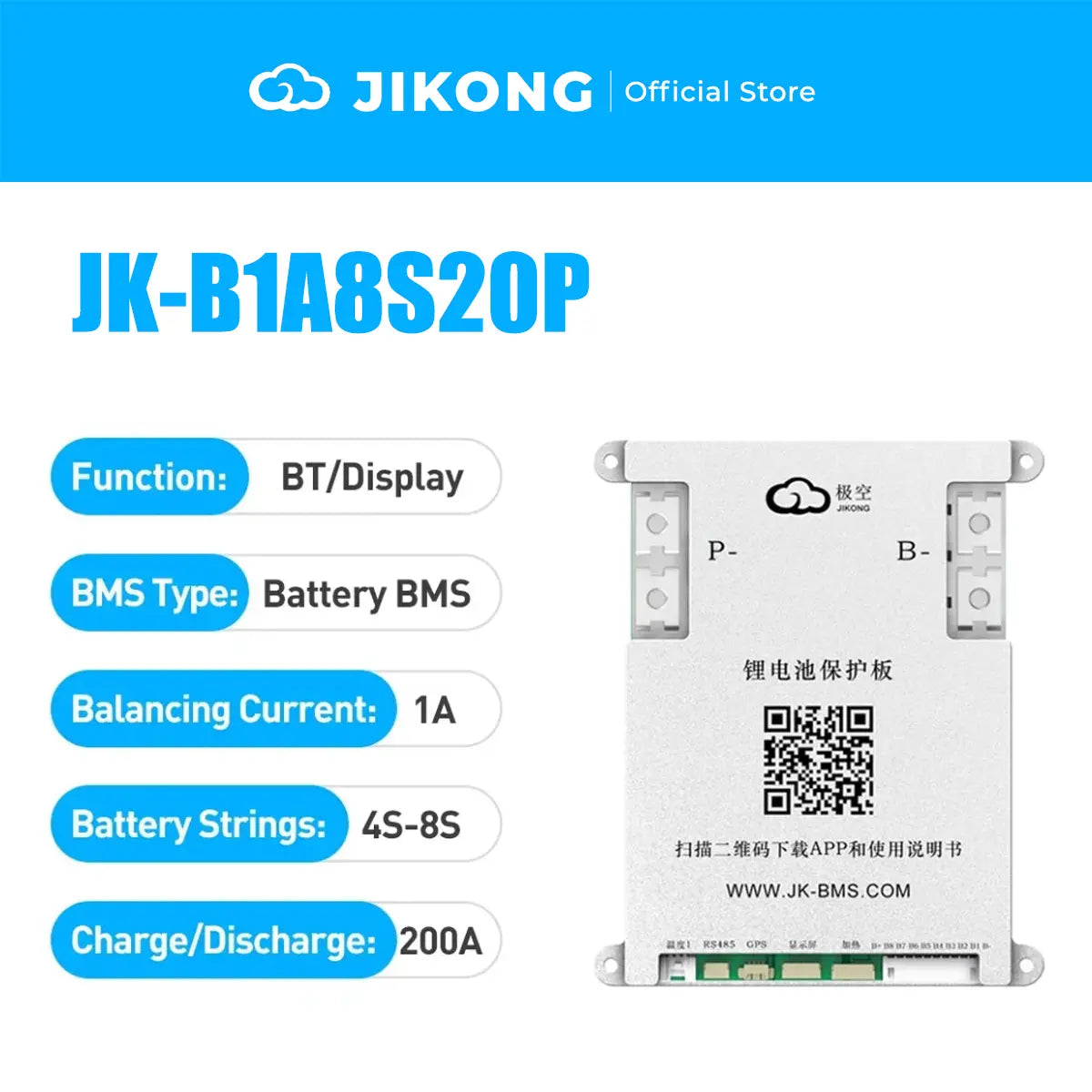

JIKONG JK-B1A8S20P Smart Active Balance BMS 200A | 4S 5S 6S 7S 8S 12V/24V for LiFePO4 Li-ion LTO Battery

JIKONG JK-B1A8S20P Smart Active Balance BMS 200A | 4S 5S 6S 7S 8S 12V/24V for LiFePO4 Li-ion LTO Battery

Sale
$45.00
$59.00 $45.00
Sale Sold out
Shipping calculated at checkout.
Color
Secure Checkout · More Payment Methods
  • Visa
  • Mastercard
  • American Express
  • PayPal
  • Apple Pay
  • Google Pay
  • Shop Pay

JIKONG Active BMS What is Active Balancing (Non-lossy Balancing)

Active balancing transfers energy from cells with higher energy to those with lower energy, achieving voltage balance with minimal energy loss. It operates continuously,
regardless ofcharging, discharging, or idle states, until the voltage difference is within a set range

Since it involves energy transfer without heat generation, active balancing can use larger currents (commonly 1-2A) without affecting cooling. It is more suitable for
larger capacitybattery packs due to longer balancing times and higher currents.



Model: JK-B1A8S10P  JK-B1A8S20P  JK-B2A8S20P  JK-B2A8S30P

Active equalizing current:  JK-B1A8S10P  JK-B1A8S20P = 1A

Active equalizing current:  JK-B2A8S20P  JK-B2A8S30P = 2A

Maximum charging current: JK-B1A8S10P = 100A  JK-B1A8S20P = 200A

Maximum discharge current JK-B2A8S20P = 200A  JK-B2A8S30P = 300A

Package: BMS x 1  Sampling Cable x 1 NTC x 1 Swith key x 1
