JIKONG 8S-16S 100A-300A Household Energy Inverter BMS with 4.3 Inch LCD Display
JIKONG 8S-16S 100A-300A Household Energy Inverter BMS with 4.3 Inch LCD Display
997 in stock
Couldn't load pickup availability
✅All prices listed above are per item; discounts will be automatically applied at checkout. 📦Free Worldwide Standard Shipping.Click "Add to Cart" to proceed to checkout.
JIKONG Energy Storage Board Series 16S Active Balancing BMS – for LiFePO4 / NCM / LTO
The JIKONG Energy Storage Board Series is a smart Battery Management System (BMS) with active balancing (non-lossy balancing) technology, designed for 8S–16S LiFePO4, NCM, and LTO battery packs. It transfers energy from higher-voltage cells to lower-voltage cells, achieving voltage balance with minimal energy loss. It operates continuously during charging, discharging, or idle states until the voltage difference is within the set range.
Standard with a 4.3-inch LCD display, with optional 3.2-inch and 7.0-inch dedicated displays for real-time monitoring of cell voltage, current, and temperature.
Available Models
| Model | Active Balancing Current | Continuous Current | Battery Strings |
|---|---|---|---|

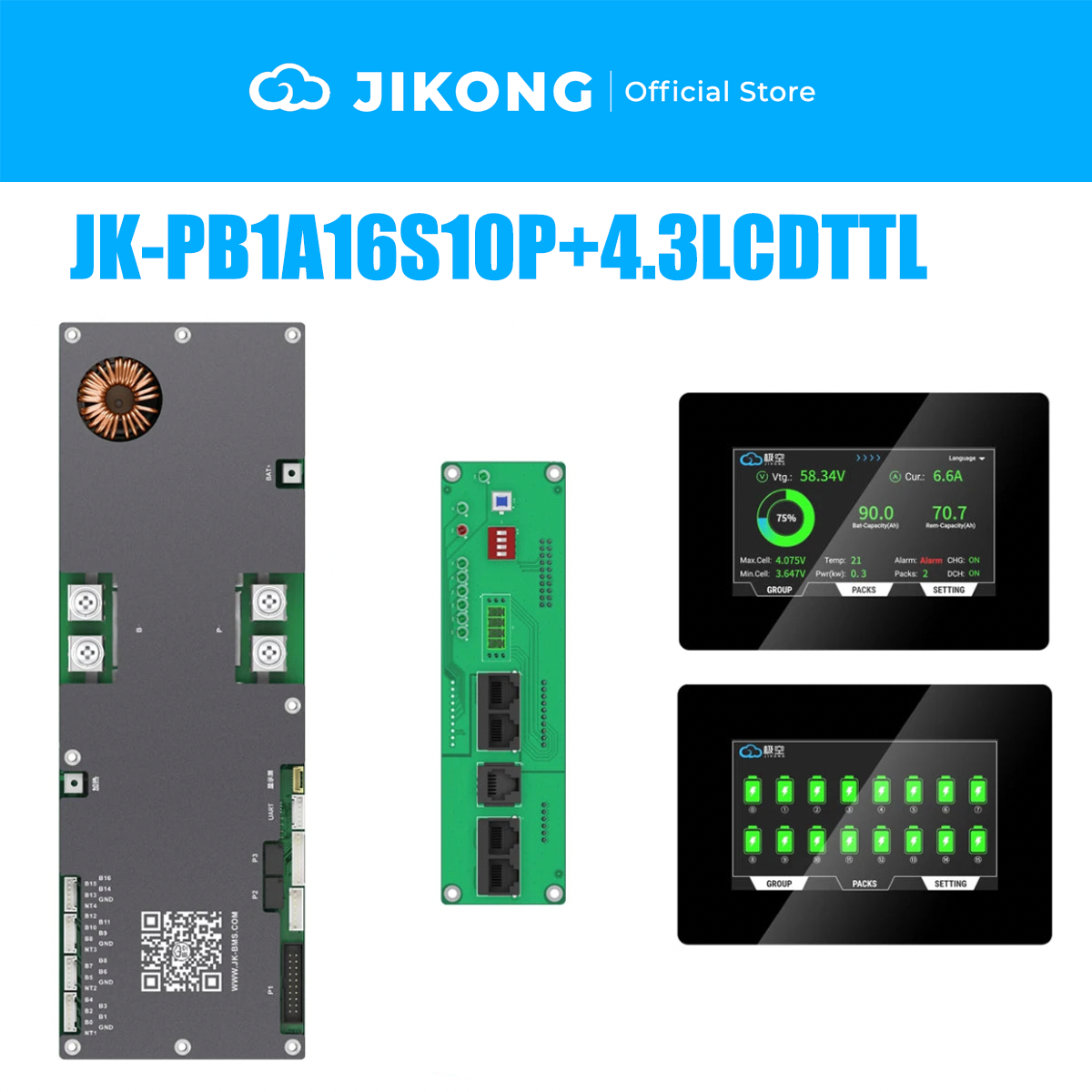

| JK-PB1A16S10P-V19 + 4.3" LCD | 1A | 100A | 8S–16S |
| JK-PB2A16S10P-V19 + 4.3" LCD | 2A | 100A | 8S–16S |

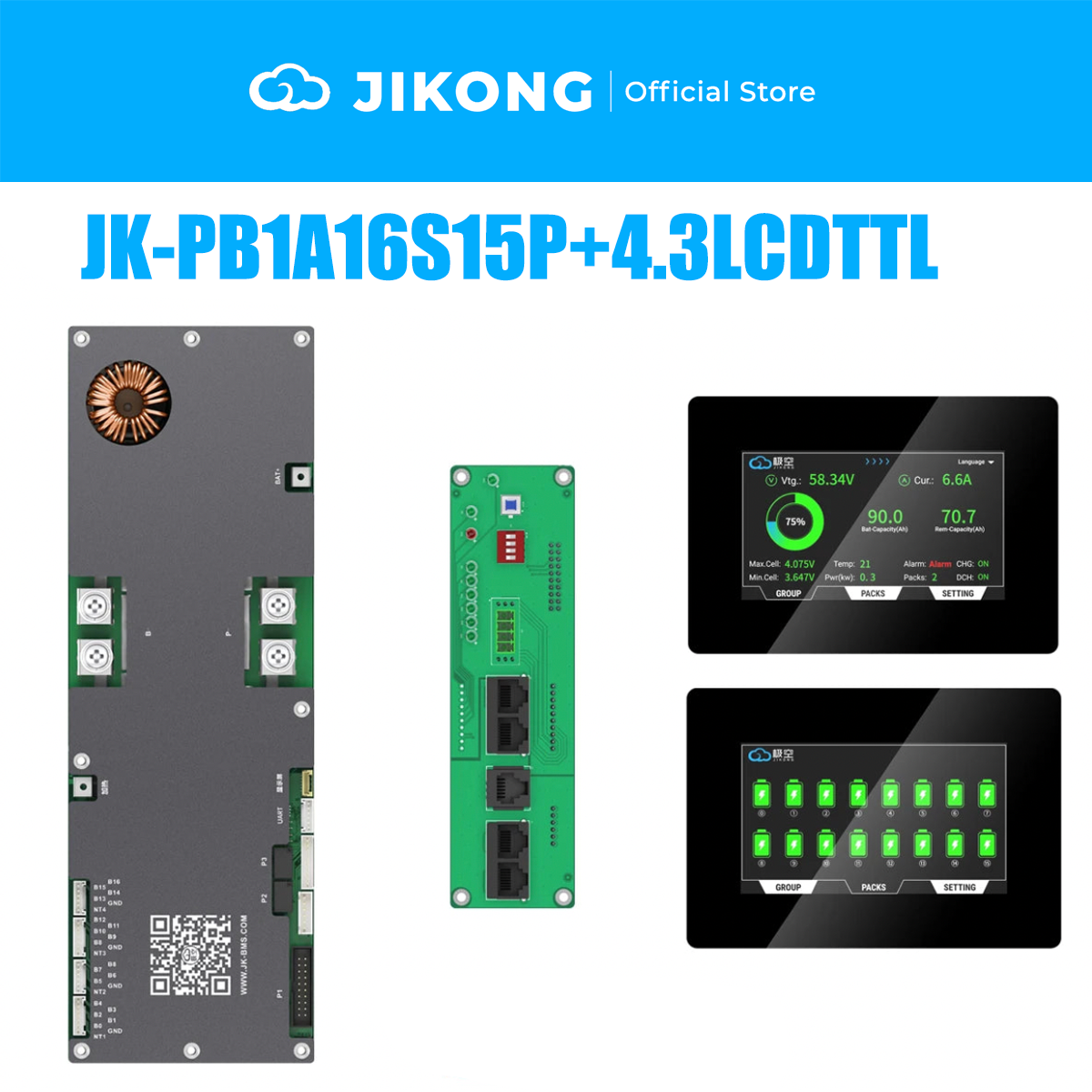

| JK-PB1A16S15P-V19 + 4.3" LCD | 1A | 150A | 8S–16S |
| JK-PB2A16S15P-V19 + 4.3" LCD | 2A | 150A | 8S–16S |
| JK-PB2A16S20P-V19 + 4.3" LCD | 2A | 200A | 8S–16S |

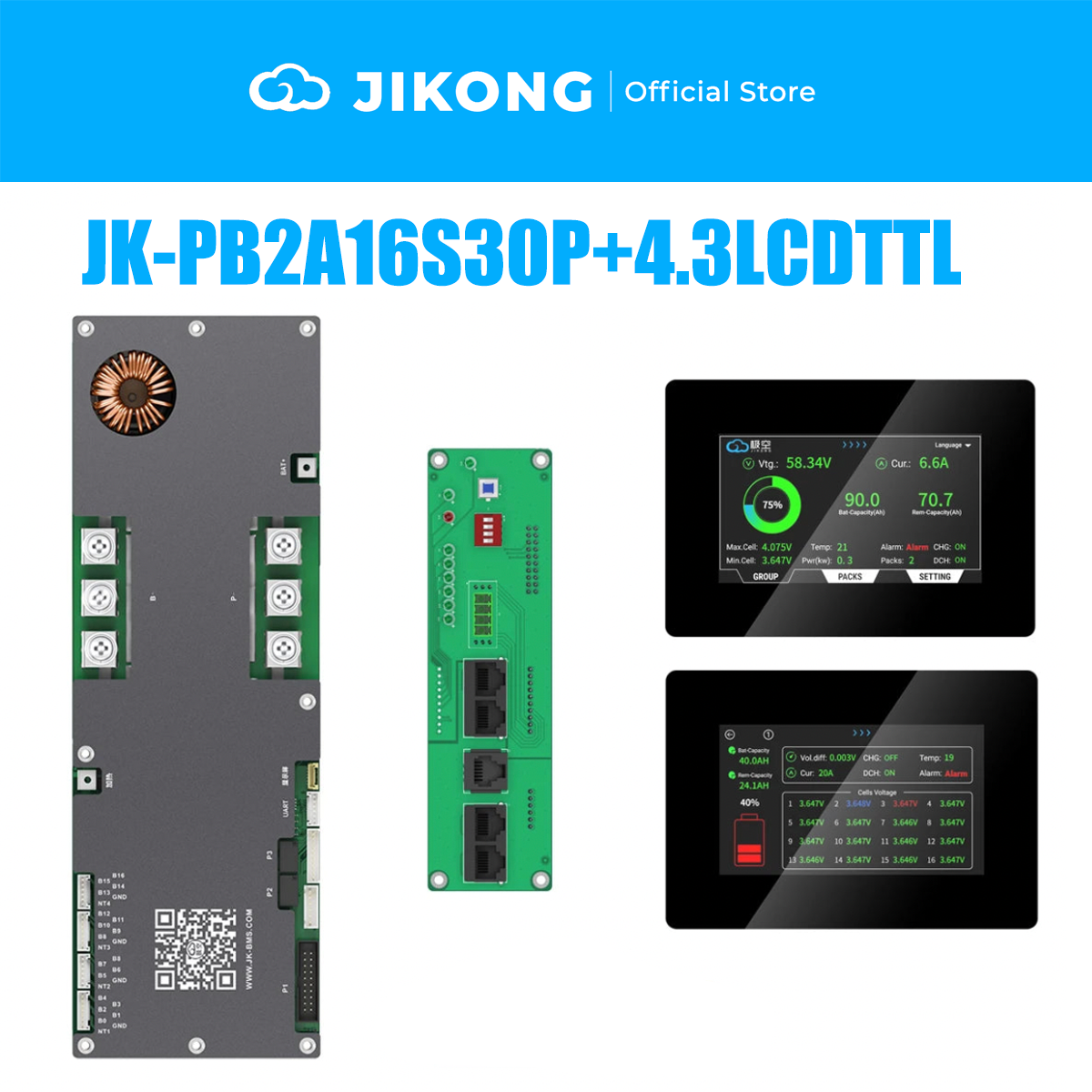

| JK-PB2A16S30P-V19 + 4.3" LCD | 2A | 300A | 8S–16S |
Technical Specifications
- Balancing Method: Active Balancing (Non-lossy)
- Battery Strings: 8S–16S
- Battery Type: LiFePO4, NCM (Ternary Lithium), LTO
- Display: Standard 4.3-inch LCD; optional 3.2-inch and 7.0-inch dedicated displays
- Active Balancing Current & Continuous Current: See model table above
Packing List
- ① BMS × 1
- ② Interface board × 1
- ③ Adapter cable B × 1 (long 30cm)
- ④ Adapter cable A × 1 (long 30cm)
- ⑤ RJ45 Network cable × 1 (long 40cm)
- ⑥ Cells total B+ Cable × 1 (long 50cm)
- ⑦ Sampling line A × 2 (long 90cm)
- ⑧ Sampling line B × 1 (long 90cm)
- ⑨ Sampling line C × 1 (long 90cm)
- ⑩ Switch × 1 (long 50cm)
- ⑪ Adapter cable C × 1 (long 30cm)
- ⑫ Heating Adapter cable × 1 (long 17cm)
- ⑬ Adapter × 1
What is Active Balancing?
Active balancing transfers energy from cells with higher energy to those with lower energy, achieving voltage balance with minimal energy loss. It operates continuously regardless of charging, discharging, or idle states, until the voltage difference is within a set range. Since it involves energy transfer without heat generation, active balancing can use larger currents (commonly 1A–2A) without affecting cooling. It is more suitable for larger capacity battery packs due to longer balancing times and higher currents.
