JIKONG JK-B2A25SRP – 2A Active Balancer 8S-25S for LiFePO4
JIKONG JK-B2A25SRP – 2A Active Balancer 8S-25S for LiFePO4
500 auf Lager
Verfügbarkeit für Abholungen konnte nicht geladen werden
✅All prices listed above are per item; discounts will be automatically applied at checkout. 📦Free Worldwide Standard Shipping.

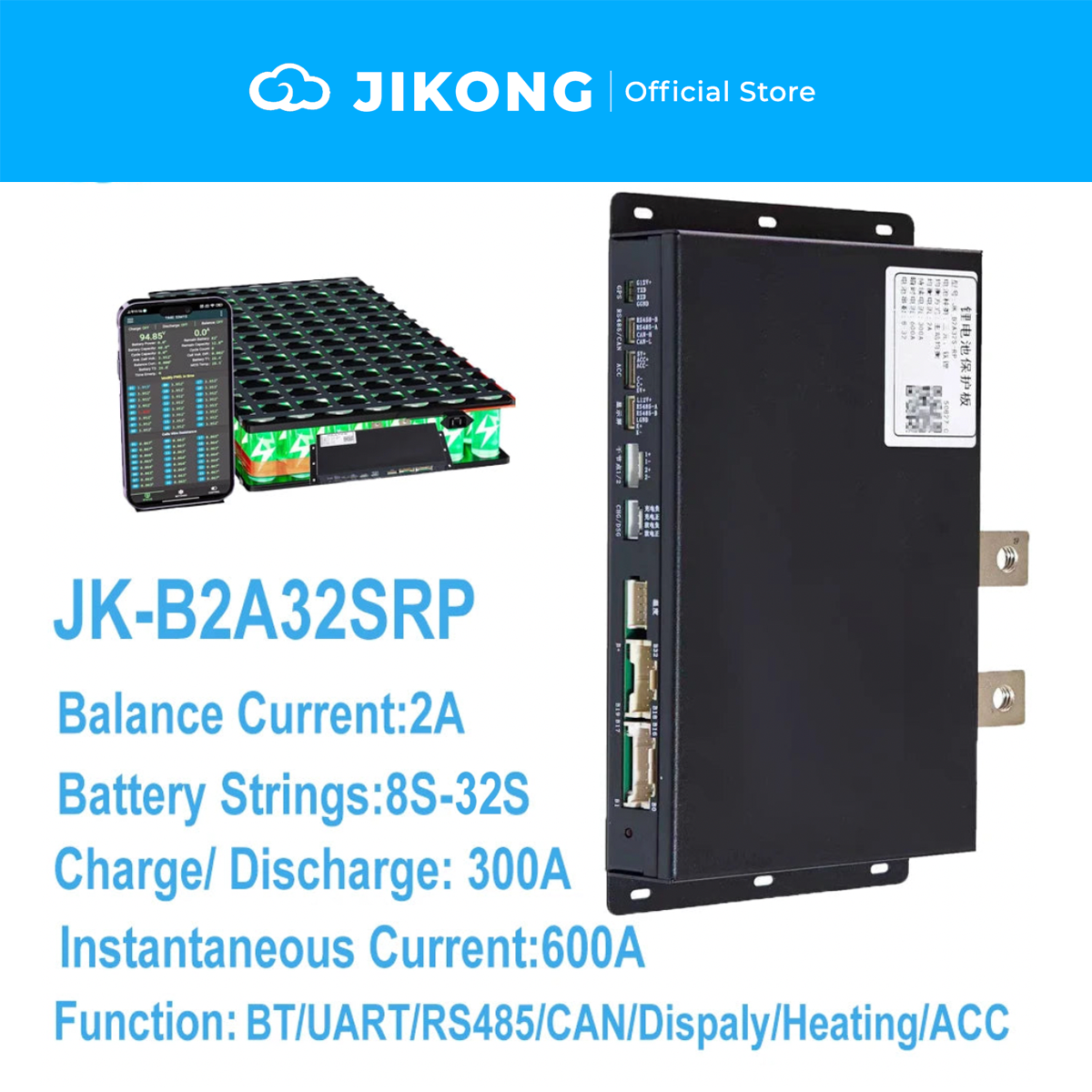

JIKONG JK-B2A25SRP / JK-B2A32SRP Relay Version Active Balancing BMS – 2A Balancer for 8S-32S LiFePO4
The JIKONG JK-B2A25SRP and JK-B2A32SRP are smart Battery Management Systems with active balancing (non-lossy balancing) technology, designed for 8S–25S or 8S–32S LiFePO4, Li-ion, and LTO battery packs. They transfer energy from higher-voltage cells to lower-voltage cells, achieving voltage balance with minimal energy loss. They operate continuously during charging, discharging, or idle states until the voltage difference is within the set range.
These are relay version BMS units. They include a shunt and are designed to work with external relays. Customers must purchase relays separately based on their current requirements. The BMS should be used in conjunction with a relay (as noted in the specifications).
Available Models
| Model | Balancing Current | Charge/Discharge | Battery Strings | Special Features |
|---|---|---|---|---|
| JK-B2A25SRP | 2A | 500A (Relay) | 8S–25S | Relay version, includes shunt |
| JK-B2A32SRP | 2A | 500A (Relay) | 8S–32S | Relay version, includes shunt, integrated pre-charge, same-port configuration |
Technical Specifications
- Balancing Method: Active Balancing (Non-lossy)
- Active Balancing Current: 2A
- Charge/Discharge: 500A via external relay
- Battery Strings: 8S–25S (JK-B2A25SRP) / 8S–32S (JK-B2A32SRP)
- Battery Type: LiFePO4, Li-ion, LTO
- Interface: RS485, CAN, Bluetooth (built-in), LCD, Switch, Sampling, Temperature
- Output: Relay split port
- Size: 188.6 × 94 × 23.5 mm
- Note: Should be used in conjunction with a relay (relay not included)
Package Includes
- BMS × 1
- Shunt × 1
- Sampling cable × 1
- NTC temperature sensor × 1
- Switch key × 1
Important: Relays are not included. Customers must purchase relays separately based on their current requirements. Battery cells and other accessories are also not included.
What is Active Balancing?
Active balancing transfers energy from cells with higher energy to those with lower energy, achieving voltage balance with minimal energy loss. It operates continuously regardless of charging, discharging, or idle states, until the voltage difference is within a set range. Since it involves energy transfer without heat generation, active balancing can use larger currents (commonly 2A here) without affecting cooling. It is more suitable for larger capacity battery packs due to longer balancing times and higher currents.
product advantages：
◆Active balance, good durability, long life, good balance and stable performance
◆Real-time active energy transfer equalization with supercapacitor as the medium (patent number: ZL 2019 2 0479589.6)
◆Single voltage range 1V~5V, equalization accuracy ±5mV
◆It can achieve 2-10A continuous balanced current, ensure battery consistency, improve battery cruising range, and delay battery aging.
◆Mobile phone Bluetooth communication, equipped with mobile APP, real-time view of battery status, support Android and IOS operating systems.
◆Support balanced cascading, suitable for more than 24 battery packs.
◆Suitable for lithium iron phosphate, ternary lithium, lithium titanate and other battery types.
Package
1 * BMS(Bluetooth bulit-in)
1 * Temperature sensor(40cm)
1 * Balance Wires(75cm)
1 * Active Switch(15cm)
6 * Cables
6 * Screws
1 * Heating cable (Only for BMS With Heat Function)
H: BMS With Heat Function
C: BMS With CANBUS chip Bulit-in
NOTE:
Due to the different voltage ranges supported.
Therefore, among the accessories of B1A8S20P/B2A8S20P,RS485, LCD and other BMS are not common.
Power Board is the same version.
Please choose to buy them carefully. Thank you
For instructions on heating cables,the green 5PIN cable of the heating cable needs to be linked to the heating pad,and the rest of the black and red cables are linked to the smart charger(after the smart charger links the BMS,it detects the temperature of the battery through the BMS,which automatically monitors the charging status of the battery)
Description of heating function:
Battery temperature is below low temperature charge protection, turn off charging, turn on heating.
Cryogenic charge protection is a parameter that can be set within APP
The heating power depends on the battery voltage and the resistance value of the heating film.
1 Internal/2 External Temperature Sensors (Detect battery temperature)
LCD and RS485 interfaces are configured by default
Bluetooth link for Phone-JIKONG BMS
Download link-IOS : Search (JIKONG BMS) in the APP STORE
Download link-Andriod :https://www.pgyer.com/Cfq3
If you need to use BMS in parallel,
Fast Class T Fuse must be added to each battery pack.
Or discharge diode (high power diode selected according to load)
