Ultimate Guide to JK BMS Wiring: Step-by-Step Installation for Active Balancing

Ultimate Guide to JK BMS Wiring: Step-by-Step Installation for Active Balancing

In the realm of high-performance battery management systems, JK BMS (JiKong BMS) stands out for its industry-leading 2A active balancing capability. Whether you are building an off-grid solar system in Australia or upgrading your RV battery bank in the US, proper wiring is the essential foundation for both safety and battery longevity.

JK Smart BMS with 2A active balance technology for LiFePO4 batteries

Figure 1: JK Smart BMS featuring 2A Active Balancing.

1. Preparation: Safety First

Before beginning the installation, ensure you have the necessary tools and safety equipment ready:

  • Multimeter: Crucial for verifying cell voltages and balancing sequence.
  • Crimping Tool: For secure and reliable cable terminations.
  • Insulated Gloves: To prevent accidental shorts during high-current wiring operations.

Pro Tip: Always double-check the voltage of every individual cell. Starting with a balanced pack is the best way to ensure healthy battery life.

2. Understanding the Main Cables (B- and P-)

The JK BMS typically utilizes a "Common Port" design for both charging and discharging.

  • B- (Blue Cable): This must be connected to the Total Negative terminal of your battery pack.
  • P- (Black Cable): This connects to your Load and Charger Negative. All external current flows through this path.

3. Step-by-Step Guide: Connecting Balance Leads

The balance wires act as the "nervous system" of your BMS. Follow this sequence strictly to avoid damaging the unit:

  1. Connect B0 (Black Wire): This always connects to the Total Negative (Negative of Cell 1).
  2. Sequence B1, B2, B3...: Connect each lead sequentially to the positive terminal of the corresponding cell.
  3. Final Red Wire: Connects to the Total Positive terminal of the entire battery pack.

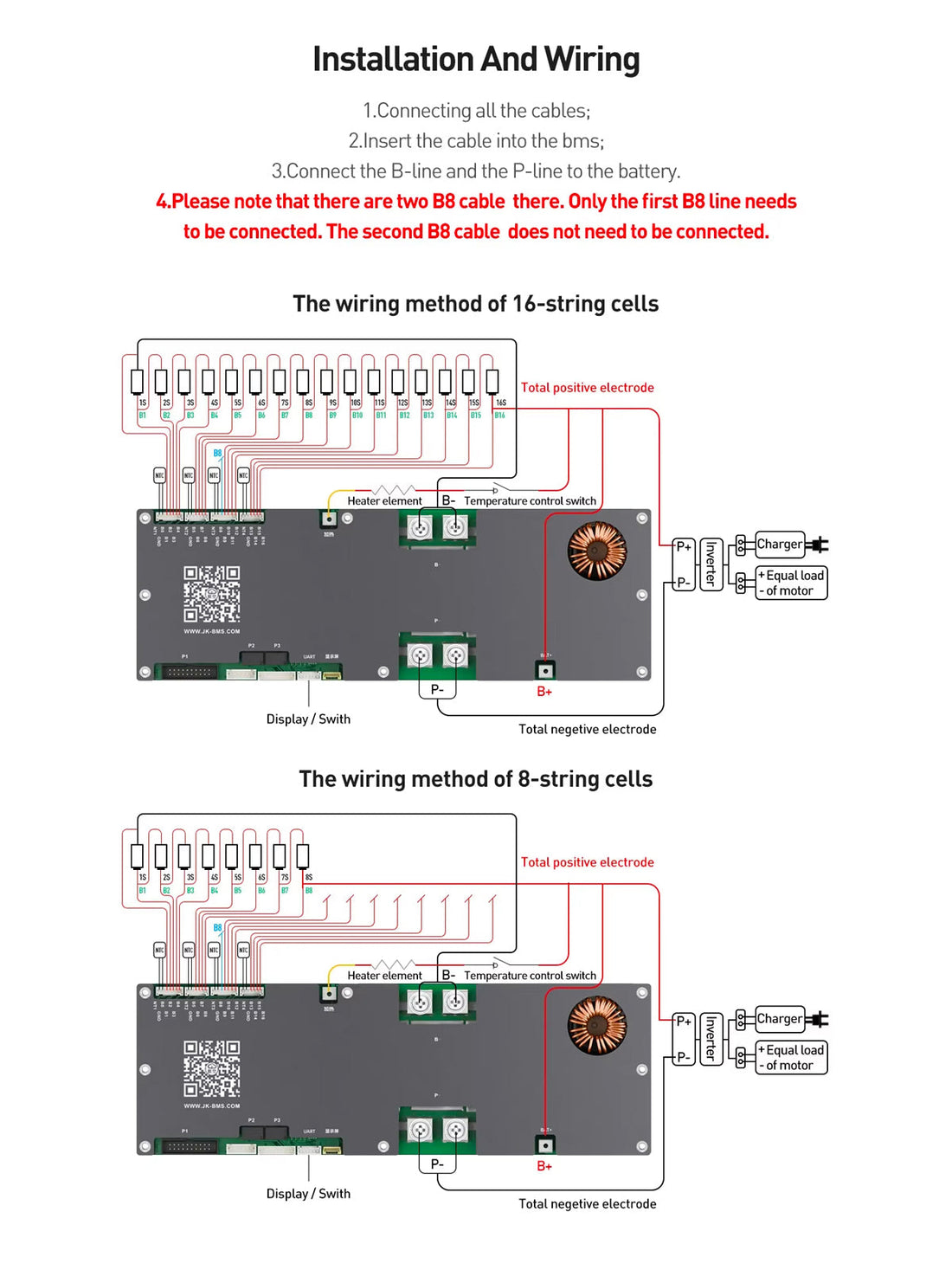

JK BMS Wiring Diagram: Step-by-step guide for LiFePO4 battery packs

JK BMS Wiring Diagram: Ensure the balance plug sequence matches your battery's specific string count.

4. Powering Up and App Calibration

Once wired, the BMS may need activation to wake from sleep mode. You can activate the JK BMS by:

  • Briefly applying a charge voltage across the P- and Total Positive terminals.
  • Pressing the physical power button (available on supported models).

After activation, open the JKBMS App on your smartphone. Connect via Bluetooth (default code: 1234) to configure your battery parameters, such as over-voltage protection and balance trigger thresholds.

5. Final Safety Checklist

Check these points before plugging in the balance lead:

  • Use a multimeter to measure the balance plug pins. Voltage should increase incrementally (e.g., by ~3.2V per pin).
  • Ensure the main B- cable is securely connected before plugging the balance leads into the BMS.
  • Verify all terminals and lugs are tightened to the manufacturer's specific torque requirements.

Conclusion

Correct wiring is the single most important step in building a reliable and safe energy storage system. By utilizing JK BMS’s active balancing technology, you are investing in a more efficient, longer-lasting battery system for your high-demand applications.
