In the rapidly evolving landscape of lithium battery technology, the management of small to medium-sized packs (typically 12V to 24V systems) requires a balance between cost-efficiency and high-end safety features. The JKBMS JK-BD4A8S-6P has emerged as the professional choice for these applications, bridging the gap with its precision active balancing and robust protection logic.

1. Superior Consistency: 0.4A Active Energy Transfer

Standard BMS units often rely on passive balancing, which dissipates excess energy as heat through resistors. This is not only inefficient but can also lead to thermal stress within the battery enclosure. The JK-BD4A8S-6P utilizes Energy Transfer Active Balancing technology.

By actively moving charge from higher-voltage cells to lower-voltage ones at a continuous rate of 0.4A, the system ensures cell consistency to within ±3mV. This process extends the lifespan of LiFePO4 and Li-ion cells significantly, maximizing the usable capacity of the entire pack over hundreds of cycles.

2. Technical Architecture & Parameters

The JK-BD4A8S-6P is built on a versatile platform that supports a wide range of chemistries and string counts:

• Battery Compatibility: Supports 3S to 8S Li-ion and LiFePO4 cells, and 7S to 8S LTO cells.
• Power Handling: Designed for a continuous discharge current of 60A, with a peak burst capacity (Short Circuit Protection) triggered at instantaneous high loads.
• Precision Sensing: Features high-precision voltage and current acquisition modules, critical for accurate SOC (State of Charge) calculation via the built-in Coulomb meter.
• Thermal Safety: Equipped with 1 internal and up to 4 external NTC temperature sensors (configuration dependent) to monitor the cell environment in real-time.

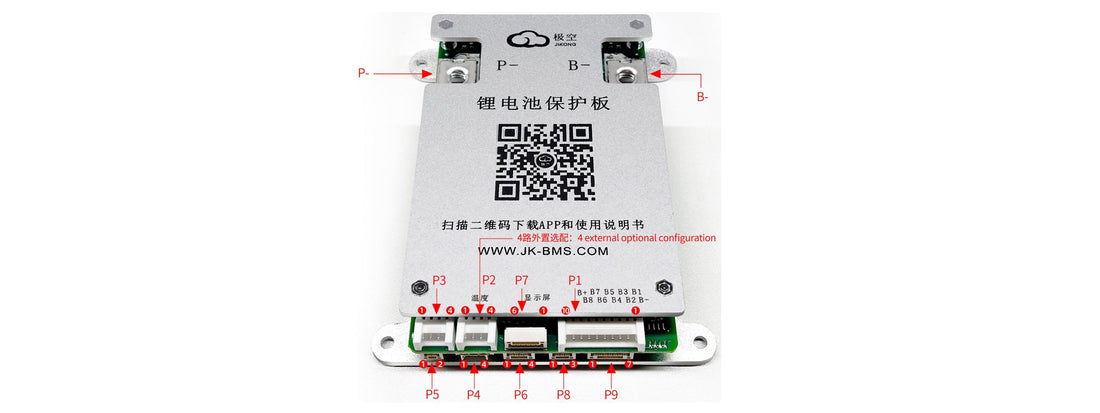

3. Structural Innovation: The "Mounting Ears" Design

One of the standout updates in version 15.3.2 is the refined physical enclosure featuring integrated mounting ears. For B2B clients in the RV, Marine, and Utility Vehicle sectors, this design change is pivotal.

Traditional BMS units often require custom brackets or adhesive mounting, which can fail under high-vibration conditions. The JK-BD4A8S-6P’s bolt-on design allows for secure, direct attachment to the battery rack or chassis, ensuring long-term mechanical stability in mobile or industrial environments.

4. Smart Connectivity & Integration

The JK-BD4A8S-6P is more than a simple protection board; it is a data-centric management hub:

• Bluetooth Wireless Control: Connect via the JKBMS APP (Android/iOS) to modify parameters, toggle charge/discharge switches, and view real-time cell health.
• System Expansion: Optional support for RS485 and CAN communication protocols allows for seamless integration with central controllers and off-grid inverters.
• Information Display: A dedicated port for LCD display screens enables local monitoring without the need for a smartphone, ideal for stationary storage systems.

5. Professional Installation Protocol

To ensure the safety of the electronics and the longevity of the battery pack, JKBMS dictates a strict wiring sequence for the JK-BD4A8S-6P. Failure to follow these steps can lead to permanent hardware damage:

1. Step 1: Connect the thick B- wire from the BMS to the main negative terminal of the battery pack.
2. Step 2: Wire the balance lead harness, starting from B0 (Total Negative) and progressing sequentially to the highest string (B8+).
3. Step 3: Verify all voltages at the harness plug using a multimeter before connecting to the BMS.
4. Step 4: Activate the BMS via the illuminated power switch or a compatible charger to initialize the system.
