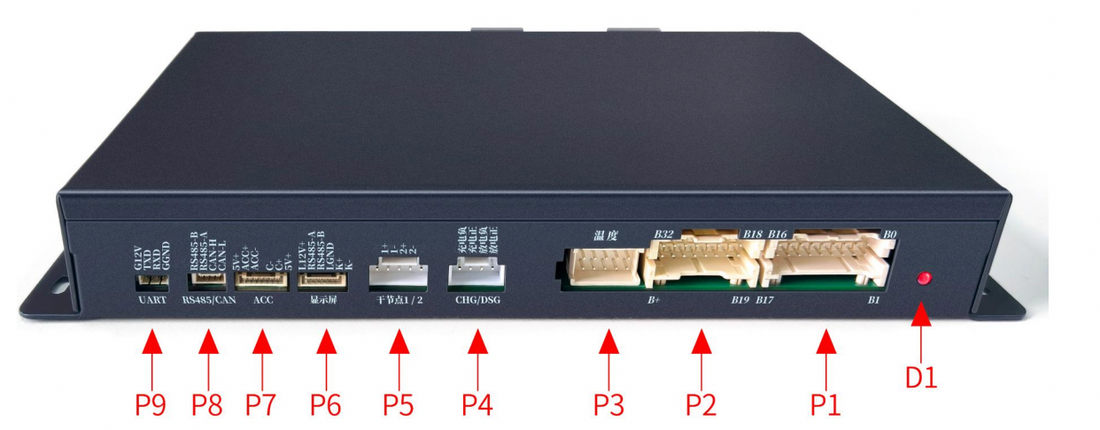

Mastering Large Battery Arrays: A Deep Dive into JKBMS JK-B2A32S-RP 32S Active Balancer BMS

As energy systems scale up, the demand for precision management in high-voltage battery arrays has never been higher. The JKBMS JK-B2A32S-RP (V20.1) is our professional-grade answer to managing complex configurations up to 32 strings with uncompromising safety.

The Active Balancing Advantage

Standard BMS units often rely on passive bleeding, which generates heat and wastes energy. The "RP" series utilizes Active Energy Transfer, moving charge between cells at a powerful 2A continuous rate. This ensures maximum longevity and peak performance for your lithium investment.

Elite Performance Specs

• Versatile Configuration: Compatible with 7S-32S Li-ion, 8S-32S LiFePO4, and 14S-32S LTO.
• Ultra-Low Consumption: Operating power stays below 1.2W even during active monitoring.
• Enhanced Connectivity: Native CAN, RS485, and UART ports for seamless inverter integration.
• Thermal Precision: 4 external NTC sensors for real-time temperature mapping across the pack.

Core Parameters at a Glance

Feature	Detailed Specification
Max Charge/Discharge	300A (600A Peak)
Supply Voltage	20V - 130V
Balancing Current	2.0A Active Energy Transfer
Dimensions	234.6 x 157.5 x 30.5 mm

Pro Tip: For large-scale Energy Storage Systems (ESS), always utilize the ACC/Charger detection and Heating function to protect your battery bank in cold climates down to -30°C.
