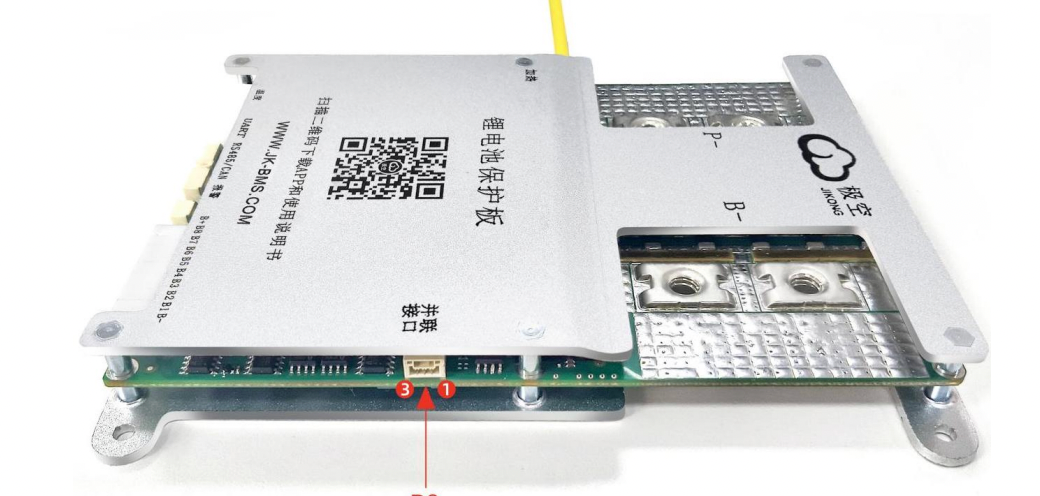

JK-BxA8S-20P is a high-current active balancing lithium battery protection board designed for 3-8S low-voltage high-capacity battery packs. It supports 1A/2A large current active equalization, up to 200A continuous charge and discharge, with full aluminum alloy housing for superior heat dissipation. Built-in Bluetooth APP control, multiple protection mechanisms and optional functions like CAN/RS485, heating, parallel and ACC detection, ideal for 12V/24V RV energy storage, solar off-grid systems, electric vehicles and industrial power supplies.
1. Product Overview & Core Advantages
High-Current Active Balancing
Adopts patented energy transfer active equalization technology with 1A / 2A optional balancing current. It transfers energy between high and low voltage cells continuously during charge, discharge and idle status, greatly improving battery consistency and extending cycle life for large capacity packs.
Aluminum Alloy Housing & Full Protection
One-piece molded aluminum alloy shell with graphite thermal conductive layer, excellent heat dissipation for 200A high current operation. Standard equipped with overcharge, overdischarge, overcurrent, short circuit, over-temperature and low-temperature protection, with automatic recovery design.
2. Complete Function Feature List
- 1A / 2A Optional High Current Active Cell Balancing (Energy Transfer Type)
- Bluetooth 5.0 Connection & Mobile APP Remote Control (Android / iOS)
- High Precision Voltage (±3mV) & Current Sampling, Built-in High Accuracy Coulomb Counter
- Full Aluminum Alloy Housing with Graphite Heat Dissipation Layer
- Standard: UART Port, Display Screen Interface, 2 External NTC Channels
- Optional: CAN Bus, RS485 Communication, Heating Function, Alarm Buzzer
- Optional: Battery Parallel Module, ACC Detection & Charger Detection Function
- Full Safety Protection: Overcharge / Overdischarge / Overcurrent / Short Circuit / Overheat / Low Temp Charge Lock
- 30-Min Emergency Bypass Switch for Road Emergency Use
- Intelligent Sleep Mode to Reduce Standby Power Consumption
- Real-time Operation Log & Accurate Time Recording
3. Model Selection Guide
| Model Series | Balancing Current | Continuous Current | Battery Compatibility | Optional Upgrades |
|---|---|---|---|---|
| JK-B1A8S-20P Series | 1A | 200A Charge / 200A Discharge | 3-8S Li-ion / 4-8S LiFePO4 / 7-8S LTO | CAN / RS485 / Heating / Alarm / Parallel / ACC |
| JK-B2A8S-20P Series | 2A | 200A Charge / 200A Discharge | 3-8S Li-ion / 4-8S LiFePO4 / 7-8S LTO |
4. Main Technical Parameters
| Parameter Item | Specifications | Unit |
|---|---|---|
| Supply Voltage Range | 7.5 ~ 36 | V |
| Max Balancing Current | 1 / 2 (Optional) | A |
| Continuous Charge / Discharge Current | 200 | A |
| Max Instantaneous Current (2min) | 400 | A |
| Main Circuit Internal Resistance | ≤ 0.35 | mΩ |
| Operating Temperature Range | -30 ~ 70 | ℃ |
| Board Dimensions | 152.25 × 127.26 × 15.6 | mm |
| Net Weight | 424 | g |
5. Interface & Wiring Introduction
The board integrates balance sampling, communication, temperature detection, display, heating, parallel and ACC interfaces. All balance wires must be connected strictly in sequence from B1 to B8 before power on to avoid hardware damage. The main power terminals P- and B- are equipped with M6 screws for high current connection.
6. Mobile APP Operation Guide
- Scan the QR code on the BMS board to download JIKONG SMART BMS APP (Android 7.0+ / iOS / HarmonyOS supported)
- Confirm all wiring is correct, then activate the board via charger, external button or display screen
- Enable phone Bluetooth, search and connect to the JK-BxA8S-20P device
- Set battery type (Li-ion / LiFePO4 / LTO), cell count, capacity and protection threshold parameters
- Control active balancing, heating, alarm and emergency switch on the BMS control page
- Monitor real-time cell voltage, total voltage, current, temperature, SOC and operation logs
7. Application Scenarios
8. Installation & Safety Notes
- Connect balance wires in strict order B1 to B8 before power on; wrong wiring will permanently damage the board
- P- (load/charger negative) and B- (battery total negative) must never be reversed
- For heating function installation, add a 45~65℃ normally closed thermal switch as secondary protection
- Do not exceed 200A continuous discharge current for long-term load operation
- When paralleling multiple battery packs, use official parallel module and disable charge current limit in APP
- Enable intelligent sleep mode for long-term storage to reduce self-discharge
- ACC detection function supports 20-100V signal or direct short circuit to enable discharge
