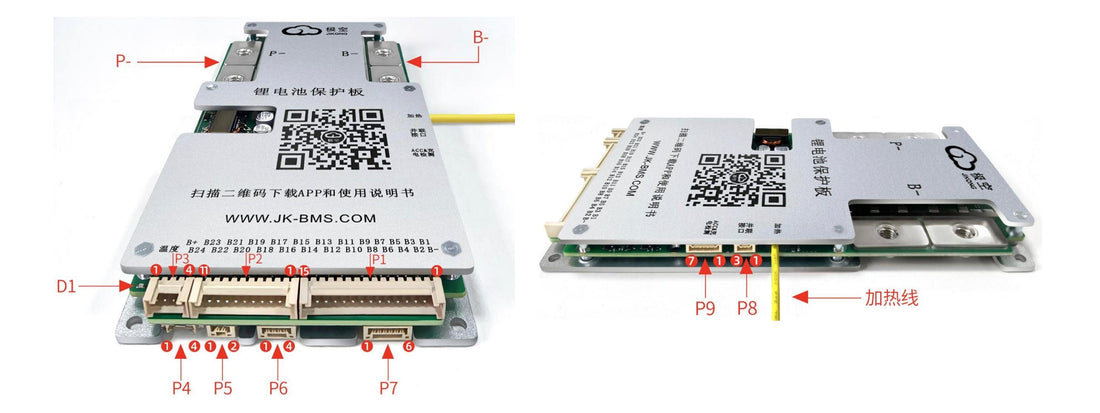

JK-BD6A24S-15PD Active Balancing BMS
The All-in-One Smart Lithium Battery Management System for Energy Storage, RV, Marine & Industrial Battery Packs
Building a reliable, long-lasting lithium battery pack requires more than just high-quality LiFePO4, ternary lithium or lithium titanate cells. Without a fully featured, high-performance Battery Management System (BMS), your battery bank faces risks of uneven cell voltage, overcharging, deep over-discharging, thermal runaway, short circuits, and drastically shortened cycle life. For DIY battery builders, solar energy storage installers, RV converters, marine electricians and industrial power system engineers, the JK-BD6A24S-15PD active balancing protection board stands out as a professional, fully configurable, future-proof solution designed to support 7S to 24S lithium battery packs with a maximum continuous 150A charge/discharge current and industry-leading 0.6A high-current active cell balancing technology. Produced under the JKVOLT brand by Chengdu Jige Fute Technology Co., Ltd., this BMS integrates comprehensive safety protection modules, Bluetooth mobile APP monitoring, multiple optional communication ports, temperature control systems and expandable functional modules to cover nearly all stationary and mobile lithium battery application scenarios worldwide.
Core Pain Points Traditional Passive BMS Fail To Solve, And How JK-BD6A24S-15PD Delivers Permanent Fixes
Most low-cost passive balancing BMS rely on resistor-based energy dissipation to balance cell voltage differences, which wastes power as heat, delivers weak balancing current, and cannot resolve large voltage gaps between cells in large-capacity battery packs. Over weeks and months of charge and discharge cycles, unbalanced cells degrade at different speeds, creating weak cells that limit total battery capacity, reduce usable runtime, and introduce severe safety hazards. The JK-BD6A24S-15PD adopts proprietary energy transfer active balancing architecture with independent intellectual property, which actively moves surplus energy from high-voltage cells to undercharged low-voltage cells instead of burning energy as heat. With a maximum continuous balancing current of 0.6A, this board rapidly eliminates cell voltage discrepancies as small as 10mV, maintains consistent cell state of charge (SOC) across the entire series string, maximizes full pack usable capacity, slows down cell aging, and extends the overall service life of your lithium battery system by 30% or more compared to passive balancing alternatives.
Beyond balancing limitations, generic basic BMS often lack layered multi-condition safety protection, limited communication compatibility, no low-temperature heating support, no emergency operation mode, and rigid fixed parameters that cannot adapt to different battery chemistries and operating environments. The JK-BD6A24S-15PD solves every common pain point with fully customizable software parameters and hardware expandable optional functions, allowing users to tailor the BMS performance precisely to LiFePO4, ternary lithium, or lithium titanate battery chemistries, cold climate operation, high-power industrial loads, multi-battery parallel energy storage systems, and remote fleet monitoring requirements.
Full Functional Breakdown of JK-BD6A24S-15PD Standard Built-In Features
1. High Precision Real-Time Data Acquisition & Bluetooth Mobile APP Control
Equipped with ±3mV high-precision single cell voltage sampling and high-resolution current detection sensors, the JK-BD6A24S-15PD tracks every critical operating metric of your battery pack in real time. Standard embedded Bluetooth module enables seamless wireless connection to the official JK BMS mobile APP, compatible with both iOS and Android operating systems. Once paired, users can remotely view individual cell voltage readings, overall pack voltage, real-time charge/discharge current, remaining battery SOC percentage, internal and external temperature sensor data, cumulative capacity logs, and full system operation timestamps with accurate time logging functionality. The APP also supports full parameter modification, including overcharge/undervoltage cutoffs, overcurrent delay timers, active balance trigger voltage difference thresholds, temperature protection limits, and sleep mode activation settings. Users can manually toggle active balancing, heating modules, emergency power mode, and charge/discharge output switches directly from their mobile phones without physical wiring adjustments to the protection board.
An integrated LED status indicator simplifies on-site troubleshooting: the LED remains solid steady when Bluetooth connects successfully, and flashes continuously when the wireless link disconnects, allowing installers to quickly diagnose pairing or connection issues without opening the APP software.
2. Complete Multi-Layer Safety Protection Suite (Standard Factory Configuration)
Safety is the top priority for all lithium battery applications, and the JK-BD6A24S-15PD includes 16 built-in automatic protection mechanisms that activate without manual user intervention, with fully adjustable trigger and recovery thresholds via the JK BMS APP:
- Charge overvoltage protection: Automatically cuts off charging once any single cell exceeds the customized overcharge voltage limit; resumes charging only after all cell voltages drop below the recovery threshold to prevent permanent cell swelling and degradation.
- Discharge undervoltage protection: Halts discharge output when individual cell voltage falls below user-set undervoltage limits, stopping deep discharge damage that permanently reduces lithium cell capacity. A secondary automatic shutdown voltage threshold provides an extra safety layer for long-term idle storage.
- Charge overcurrent protection: Detects excessive charging current beyond the programmed continuous charge rating, triggers protection after a configurable delay timer, and restores charging after a set cooling recovery window to avoid charger spike current false triggers.
- Discharge overcurrent protection: Supports up to 150A continuous discharge current with adjustable overcurrent delay and recovery timers, ideal for high-power inverters, motor loads and heavy industrial equipment; limits instantaneous peak current to 300A to safeguard circuit wiring and MOSFET components.
- Over-temperature protection for charging and discharging: Separate temperature cutoff values for charge and discharge modes, with independent recovery temperature settings to avoid repeated cycling of protection triggers during high-temperature operation.
- MOSFET internal overheat protection: Monitors the temperature of the BMS power MOSFET switches, disconnects power output when internal board temperature hits 100°C, and restores operation after cooling to 80°C to prevent board burnout under heavy sustained loads.
- Low-temperature charging protection: Blocks charging when battery temperature drops below -20°C by default, protecting lithium cells from lithium plating damage in cold winter environments; charging resumes automatically once ambient temperature rises above -10°C.
- Ultra-fast short circuit protection: Activates within 5 microseconds upon detecting severe short-circuit conditions on charge or discharge lines, eliminating fire risks caused by accidental wiring faults, loose terminals, or defective load equipment. Short circuit recovery time is fully adjustable in the APP to resolve false triggers from high-capacity load internal capacitors.
- Intelligent automatic sleep mode: Minimizes standby power consumption of the BMS itself; the board enters low-power sleep if charge/discharge current stays below 1A for 26 consecutive hours, reducing parasitic battery drain during long-term storage. Users can reactivate the system via charger voltage input, physical button trigger, or optional LCD display activation.
- Emergency 30-minute power supply mode: If the battery pack hits critical fault states including over-temperature, severe undervoltage, or broken cell balance wiring, users can enable emergency mode in the APP to unlock charge and discharge output for a continuous 30-minute window. This feature prevents sudden total power loss for critical equipment such as RV vehicles, off-grid medical power supplies, and mobile work machinery, giving operators enough time to safely shut down loads or relocate equipment without mid-operation breakdowns.
3. Universal Battery Chemistry Compatibility & Wide Series Cell Support
The JK-BD6A24S-15PD supports three mainstream lithium battery chemistries with pre-programmed default parameter templates within the JK BMS APP:
- Ternary lithium-ion cells: Compatible with 7S–24S series packs, default single cell overcharge voltage set to 4.2V, undervoltage protection at 2.82V.
- LiFePO4 lithium iron phosphate cells: Works with 8S–24S configurations, optimized 3.6V full charge voltage and 2.6V low voltage cutoff, the most widely used chemistry for solar energy storage and off-grid power systems.
- Lithium titanate LTO cells: Supports 14S–24S packs with specialized low voltage parameter sets for long-cycle low-temperature industrial battery applications.
All default voltage, current and temperature parameters can be fully overwritten by users to match custom cell specifications, making this BMS adaptable to custom-built battery packs of any capacity from small 50Ah RV batteries up to large 1000Ah+ stationary solar wall energy storage banks.
Optional Expandable Functional Modules for Customized Industrial & Commercial Projects
For advanced system integrators, fleet managers, cold-climate installers and multi-bank parallel energy storage developers, the JK-BD6A24S-15PD features multiple hardware expansion ports supporting optional add-on functional modules that upgrade the base BMS to meet complex project requirements:
1. Low-Temperature Heating Function (Optional Model Suffix: PDH)
Designed for regions with harsh freezing winters, the heating module supports a 10A rated heating current, driving external heating resistors or heating films to raise battery temperature before charging is allowed. Users can toggle heating activation directly from the JK BMS APP, and the system pairs with 45°C–65°C normally closed thermal switches installed on the heating circuit as secondary overheat protection to eliminate thermal runaway risks during cold weather operation. This add-on is essential for LiFePO4 battery systems installed in Northern Europe, Canada, Northern United States and high-altitude cold mountain areas.
2. CAN & RS485 Industrial Communication Ports (Optional Model Suffix: PDC / PDR / PDHCR)
Onboard CAN bus and RS485 Modbus communication ports enable seamless integration with industrial energy storage host controllers, solar inverters, BMS parallel modules, remote fleet monitoring systems and smart building EMS energy management software. System installers can configure unique device addresses and select standard communication protocols via the mobile APP, supporting centralized real-time monitoring and parameter control of dozens of battery packs within a single energy storage plant or commercial vehicle fleet.
3. Multi-Battery Parallel Function (Optional)
Energy storage projects often require connecting multiple large battery banks in parallel to scale total system capacity. The parallel module expansion port allows synchronized operation of multiple JK-BD6A24S-15PD boards, with dedicated status and enable signal wiring to balance charge and discharge load distribution across all parallel packs. Users simply disable charging current limiting logic inside the JK BMS APP to activate parallel mode functionality, eliminating costly custom balancing hardware for large-scale solar energy wall systems.
4. ACC Vehicle Ignition & Charger Detection Ports (Optional)
Built for RV, golf cart, sightseeing vehicle and shared electric car manufacturers, the ACC detection port provides two flexible activation methods for discharge output: users can apply 4.5V–15V voltage between ACC+ and ACC- terminals to wake the BMS, or short ACC+ directly to the onboard 5V power rail for simplified wiring. The separate charger detection CD port uses identical 4.5V–15V voltage trigger logic to enable charging mode when an external charger is connected, perfect for vehicle OEM battery pack integration with factory ignition and charging wiring harnesses.
5. GPS Remote Positioning via UART Interface (Standard UART Port Included)
The standard onboard UART serial port outputs 3.3V TX/RX signals and auxiliary power supply matching external GPS positioning modules. Installers can attach a third-party GPS unit to track battery pack location in rental electric vehicles, remote off-grid solar stations and mobile construction power equipment, enabling real-time remote location tracking alongside standard BMS battery data monitoring.
6. LCD Digital Display, Audible Alarm Buzzer & One-Wire Communication (All Optional)
A dedicated RS485 display port supports compatible JK series LCD screens ranging from 2.0-inch compact panels to 7.0-inch large industrial monitors, allowing on-site battery data viewing without mobile phone Bluetooth pairing. The optional buzzer alarm module triggers audible alerts when the BMS detects overcharge, over-temperature, cell imbalance or short circuit faults, providing clear on-site warning signals for unattended energy storage systems. One-wire single-line communication add-ons simplify wiring for compact integrated battery pack OEM designs with limited internal space.
Full Technical Specifications of JK-BD6A24S-15PD Active Balancing BMS
| Parameter Item | Specifications | Unit |
|---|---|---|
| Operating Supply Voltage | 20–100 | V |
| Board Operating Power Consumption | ≤800 | mW |
| Working Ambient Temperature Range | -30 ~ +70 | °C |
| Maximum Supported Series Cells | 24 | Strings |
| Max Continuous Active Balancing Current | 0.6 | A |
| Rated Continuous Charging Current | 150 | A |
| Rated Continuous Discharging Current | 150 | A |
| Maximum Instantaneous Peak Current | 300 | A |
| Main Circuit Internal Resistance | 0.36 | mΩ |
| Physical Board Dimensions | 160 * 83 * 13.6 | mm |
| Net Weight of Finished Protection Board | 415 | g |
| Built-In Temperature Sensors | 1 internal NTC, 2 external NTC ports | Channels |
Main Application Scenarios For JK-BD6A24S-15PD BMS
Thanks to its flexible cell series support, high 150A current rating, wide battery chemistry compatibility and fully expandable optional functions, this active balancing BMS fits dozens of popular lithium battery build use cases across global markets:
- Off-grid solar energy storage wall systems, residential and commercial solar backup power stations
- RV, camper van, caravan and mobile tiny house lithium battery packs
- Marine boats, yachts, fishing vessels and electric watercraft power systems
- Small electric sightseeing vehicles, golf carts, low-speed mobility scooters
- Shared electric passenger vehicles and light commercial EV auxiliary battery packs
- Industrial backup power, telecom base station UPS battery storage systems
- High-power portable off-grid construction machinery power supplies
- Custom OEM lithium battery packs for equipment manufacturers worldwide
- Large parallel multi-bank energy storage power plants for residential and commercial self-consumption solar systems
Installation & Activation Quick Overview
Installing the JK-BD6A24S-15PD protection board follows standardized wiring logic detailed fully in the official V20.0.1 user manual. Users must first connect the multi-pin balance sampling cables to every individual cell terminal in series order, then wire the main battery negative B-, total pack positive B+, load/charger negative P-, and optional heating, temperature sensor, communication and display expansion cables according to the official connector pinout definitions. The board features multiple standard HY2.0 and A1254WF series plug-and-play connectors to eliminate messy custom soldering wiring during assembly.
Three supported activation methods power on the BMS after full wiring completion: charger voltage activation (charger output 2V higher than total pack voltage), physical button trigger via optional LCD display, or direct display screen activation. After successful startup, users download the official JK BMS mobile APP, pair via Bluetooth, select their battery chemistry type, adjust all charge, discharge, balance and temperature protection parameters to match their battery pack specifications, and complete initial system calibration before first full charge and discharge cycles.
Access Official Technical Manuals, Wiring Diagrams & Parameter Guides From Our Download Center
Every JK BMS product sold by JKVOLT comes with complete official English and Chinese technical documentation to support DIY builders, installers, OEM engineers and wholesale distributors. Our dedicated download center hosts the full JK-BD6A24S-15PD V20.0.1 user maintenance manual, full series BMS specification sheets, wiring diagram collections, CAN/RS485 communication protocol documents, heating function operation guides, active equalizer setup tutorials, LCD display operation manuals, GPS module installation guides and parameter configuration quick reference guides for all compatible JK BMS models ranging from 4S small packs up to 32S high-voltage industrial systems. All documents are provided in downloadable PDF format for offline viewing, printing and on-site project reference during battery pack assembly and commissioning.
Whether you require detailed connector pin definitions, default factory parameter tables, step-by-step APP parameter adjustment workflows, multi-board parallel setup instructions or cold-climate heating module wiring diagrams, all critical technical resources are centralized within our easy-to-access download portal. Wholesale clients and OEM partners can also request customized technical packs including editable specification sheets and OEM modification documentation directly via the download center support inquiry form.
