JIKONG JKBMS 4S 5S 6S 7S 8S 17S 20S 24S 12V 24V 48V Active BMS 40A 60A 100A 200A 300A Lifepo4 Li-Ion Lto Battery Smart BMS

JIKONG JKBMS 4S 5S 6S 7S 8S 17S 20S 24S 12V 24V 48V Active BMS 40A 60A 100A 200A 300A Lifepo4 Li-Ion Lto Battery Smart BMS

$79.74
$79.74
Sale Sold out
Shipping calculated at checkout.
Color

JIKONG Active BMS What is Active Balancing (Non-lossy Balancing)

Active balancing transfers energy from cells with higher energy to those with lower energy, achieving voltage balance with minimal energy loss. It operates continuously,
regardless ofcharging, discharging, or idle states, until the voltage difference is within a set range

Since it involves energy transfer without heat generation, active balancing can use larger currents (commonly 1-2A) without affecting cooling. It is more suitable for
larger capacitybattery packs due to longer balancing times and higher currents.

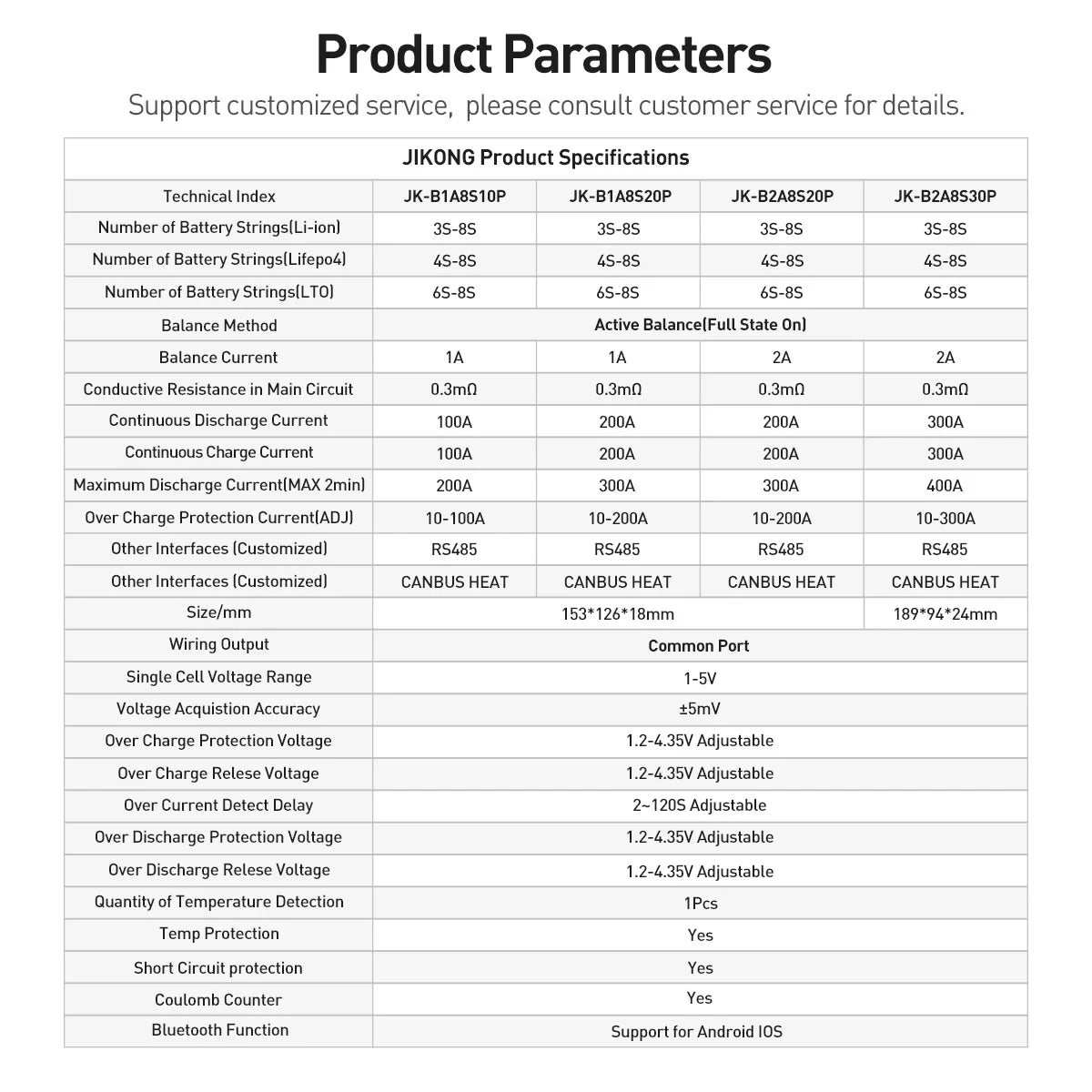

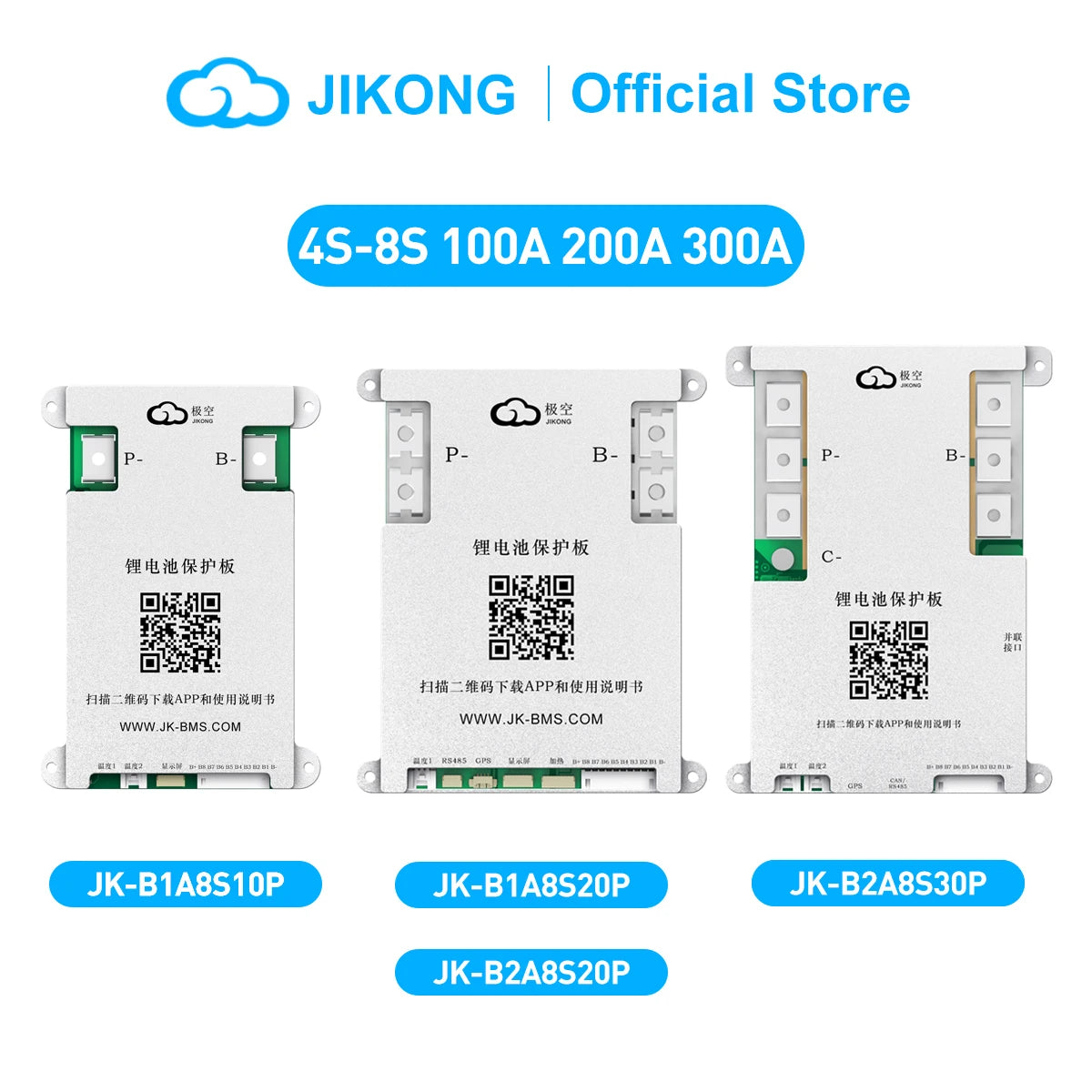

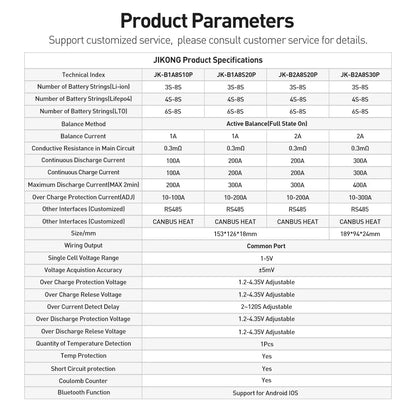

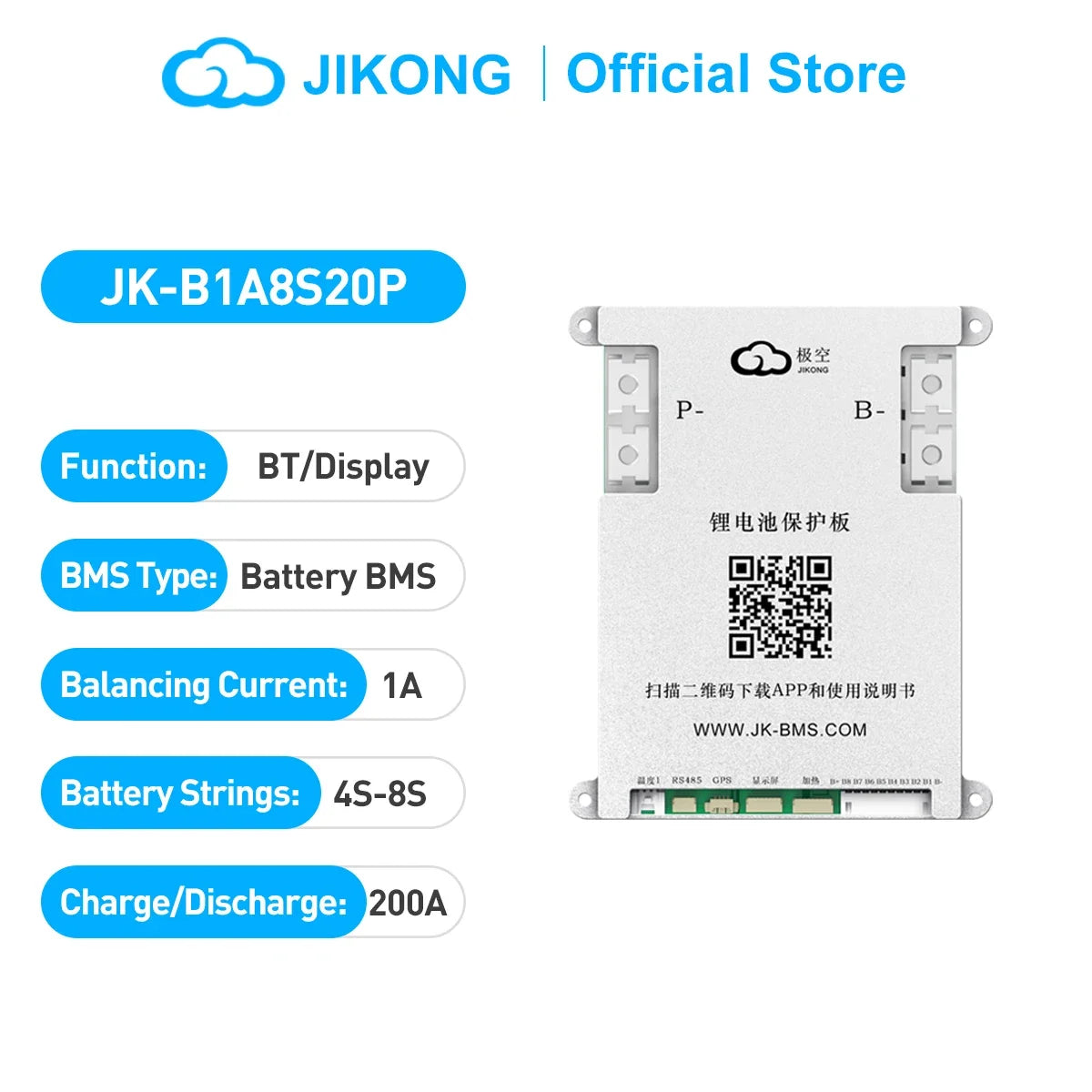

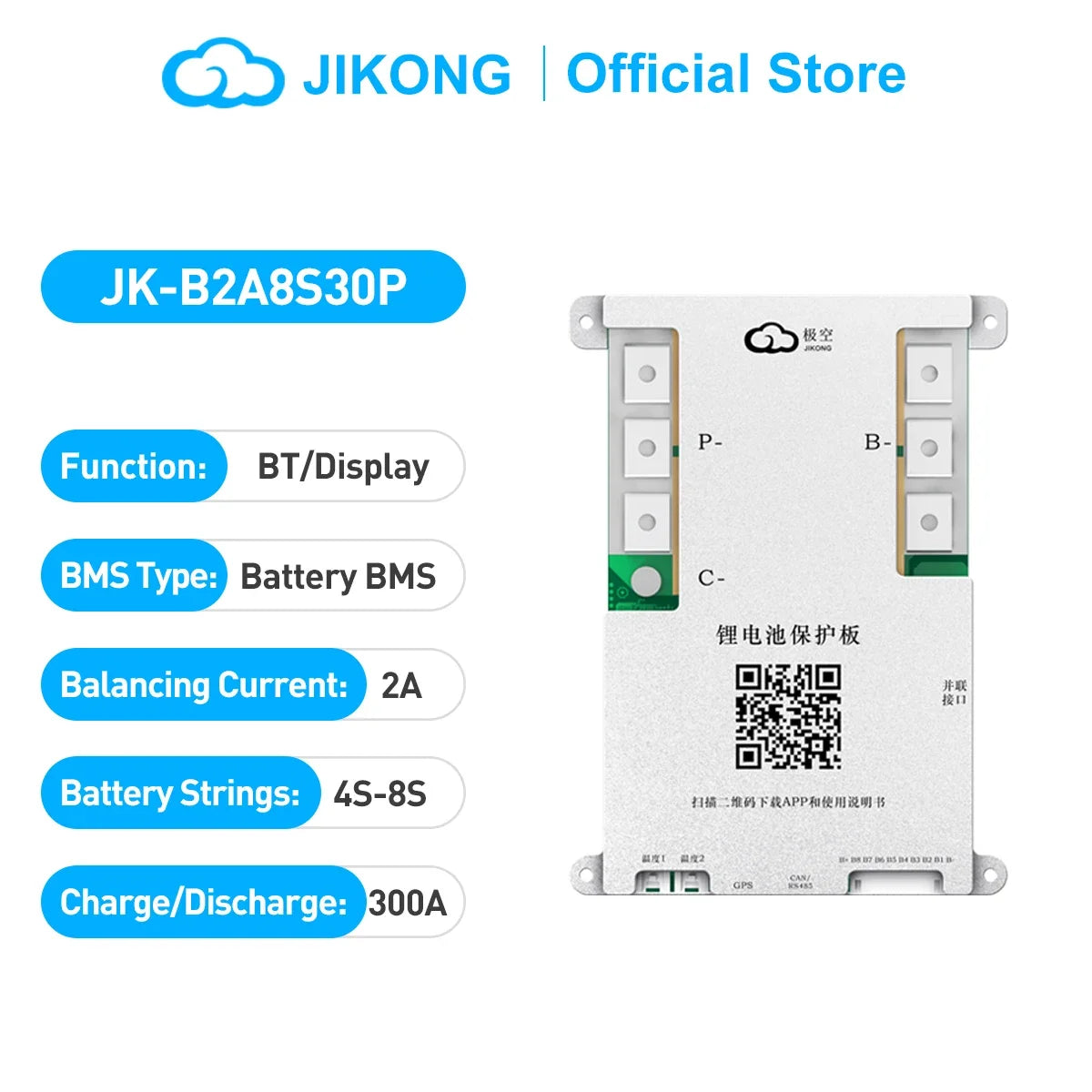

Model: JK-B1A8S10P  JK-B1A8S20P  JK-B2A8S20P  JK-B2A8S30P

Active equalizing current:  JK-B1A8S10P  JK-B1A8S20P = 1A

Active equalizing current:  JK-B2A8S20P  JK-B2A8S30P = 2A

Maximum charging current: JK-B1A8S10P = 100A  JK-B1A8S20P = 200A

Maximum discharge current JK-B2A8S20P = 200A  JK-B2A8S30P = 300A

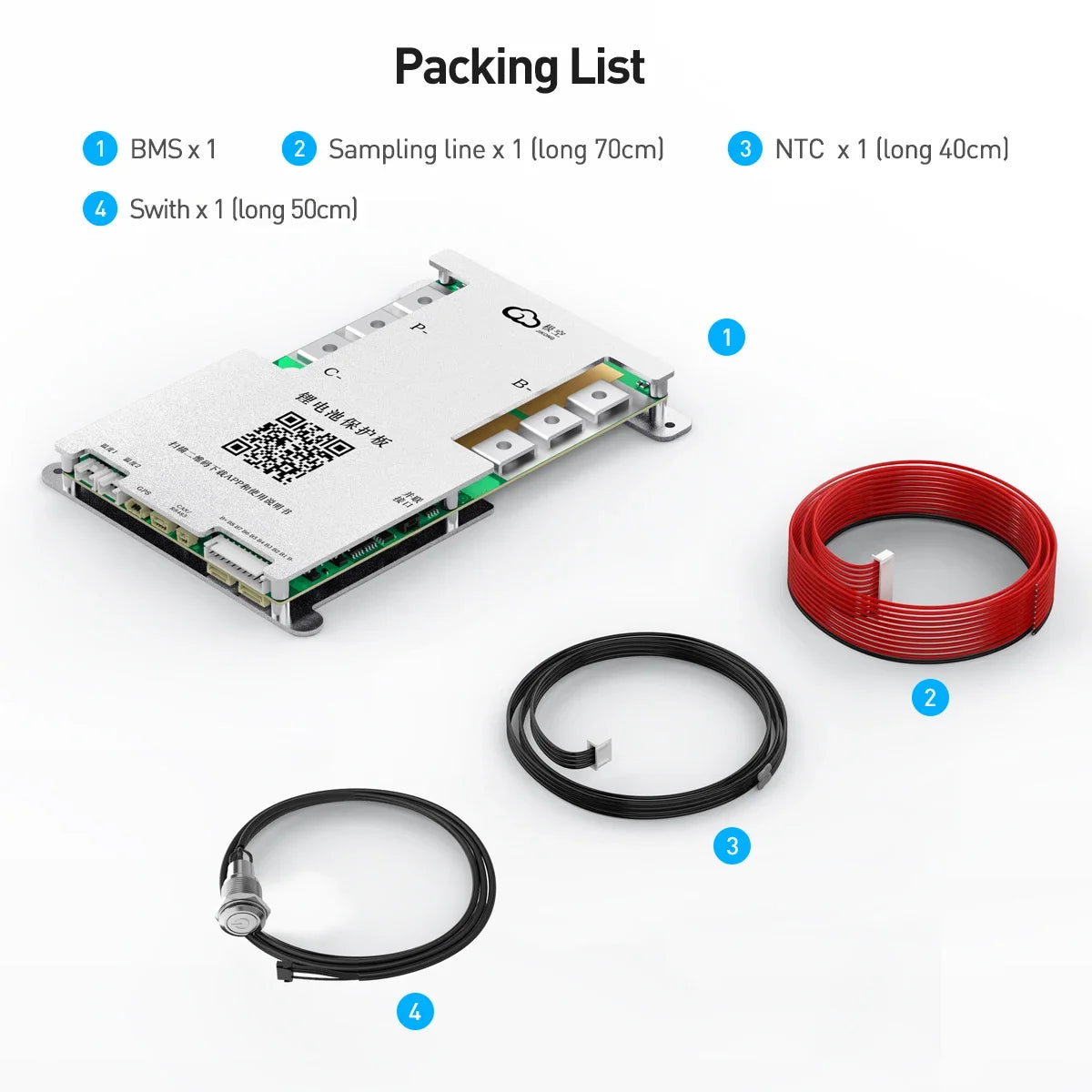

Package:
Switch key x 1
BMS x 1
Sampling Cable x 1
NTC x 1
